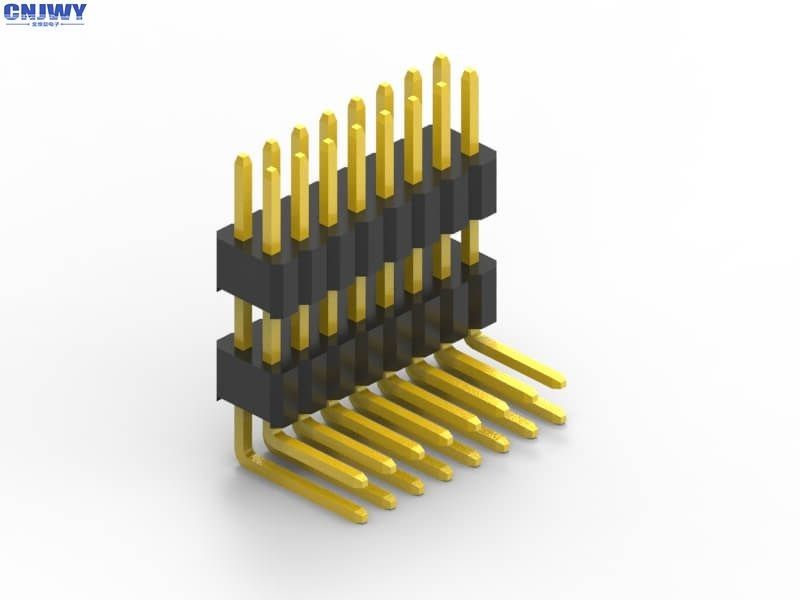

PA6T UL 94-V0 Insulation Material and Solder Termination Circuit Board Wire Connectors for Advanced Designs

Product Description:

A PCB Header Connector is an essential component in electronic devices, providing a reliable connection interface for various applications. One such versatile connector is the Cable Joint Connector, known for its durability and efficiency in transmitting signals between different circuit boards or electronic components.

With a Contact Resistance of 20mΩ Max, the PCB Header Connector ensures minimal loss of signal quality during transmission, maintaining a strong and stable connection. This feature is crucial in maintaining the integrity of data and power transfer in heavy-duty applications that require precision and reliability.

The Dual Row design of the connector allows for greater flexibility in connecting multiple cables or components, making it suitable for complex electronic systems that require extensive interconnections. This configuration enhances the overall functionality and adaptability of the connector, enabling seamless integration into various electronic designs.

Featuring a Current Rating of 1.0AMP, the PCB Header Connector is capable of handling moderate levels of electrical current, making it ideal for a wide range of electronic devices and applications. Whether used in power distribution systems or signal transmission circuits, this connector provides efficient connectivity without compromising on performance or safety.

Designed for SMD/SMT Mounting Type, the PCB Header Connector offers easy and secure installation on the PCB surface, ensuring a stable and reliable connection in demanding environments. This mounting style simplifies the assembly process, saving time and effort during production and maintenance tasks.

With Pin options ranging from 2 Pins to 40 Pins, the PCB Header Connector provides versatile connectivity solutions for different electronic configurations, allowing for customization based on specific project requirements. Whether connecting a few key components or multiple signal lines, this connector offers the flexibility needed to create efficient and optimized electronic systems.

In conclusion, the PCB Header Connector is a reliable and versatile component that serves as a vital link in electronic devices and systems. With its low Contact Resistance, Dual Row design, moderate Current Rating, SMD/SMT Mounting Type, and flexible Pin options, this connector is well-suited for a wide range of applications, including Cable Joint Connector, Heavy Duty Rectangular Connector, and other critical electronic connections.

Features:

• Product Name: PCB Header Connector
• Withstand Voltage: 500V AC/DC
• Contact Shape: Square Pin
• Color: Standard (Black) or be customized
• Termination: Solder
• Operation Temperature: -40℃ To +105℃

Technical Parameters:

Applications:

The JWY ST127-XXXXXX PCB Header Connector is a versatile and reliable product that can be used in a wide range of electronic applications. With certifications including UL, SGS, RoHs, and REACH, you can trust the quality and safety of this connector. Made in China, this product offers a minimum order quantity of 2Kpcs with negotiable pricing and flexible payment terms including T/T and Western Union.

Designed for durability and performance, the Durable 20 Pin PCB Header Connector features a 1mm pitch PA6T dual row male pin header. The contact resistance of this connector is 20mΩ max, ensuring efficient power transmission. The termination method is solder, and the contact material is a reliable copper alloy.

Whether you need to connect boards for power transmission or data exchange, the JWY PCB Header Connector is an ideal choice. Its mounting type is SMD/SMT, making it suitable for various board-to-board power connectors and board-to-board connector applications.

With a supply ability of 100000pcs per day, you can rely on this connector for your production needs. The delivery time is quick, ranging from 7 to 15 working days, ensuring that you can meet your project deadlines. The packaging details include PE/tray/tube/tape/reel packaging, providing convenience and protection during transportation.

Support and Services:

Our PCB Header Connector product comes with comprehensive Product Technical Support and Services to ensure a smooth user experience. Our team of experts is available to assist with any technical inquiries, installation guidance, troubleshooting issues, and product specifications.

Our technical support services also include product manuals, datasheets, application notes, and online resources for your convenience. We are committed to providing excellent post-sales support to guarantee your satisfaction with our PCB Header Connector product.

Packing and Shipping:

Product Name: PCB Header Connector

Description: High-quality PCB header connector suitable for various electronic applications.

Package Contents:

• 1 x PCB Header Connector
• Documentation and user manual

Shipping Information:

• Shipping Method: Standard Shipping
• Delivery Time: 5-7 business days

FAQ:

Q: What is the brand name of the PCB Header Connector?

A: The brand name is JWY.

Q: What is the model number of the PCB Header Connector?

A: The model number is ST127-XXXXXX.

Q: What certifications does the PCB Header Connector have?

A: The PCB Header Connector is certified by UL, SGS, RoHs, and REACH.

Q: Where is the PCB Header Connector manufactured?

A: The PCB Header Connector is manufactured in China.

Q: What is the minimum order quantity for the PCB Header Connector?

A: The minimum order quantity is 2,000 pieces.
